Model No
KSC-1390

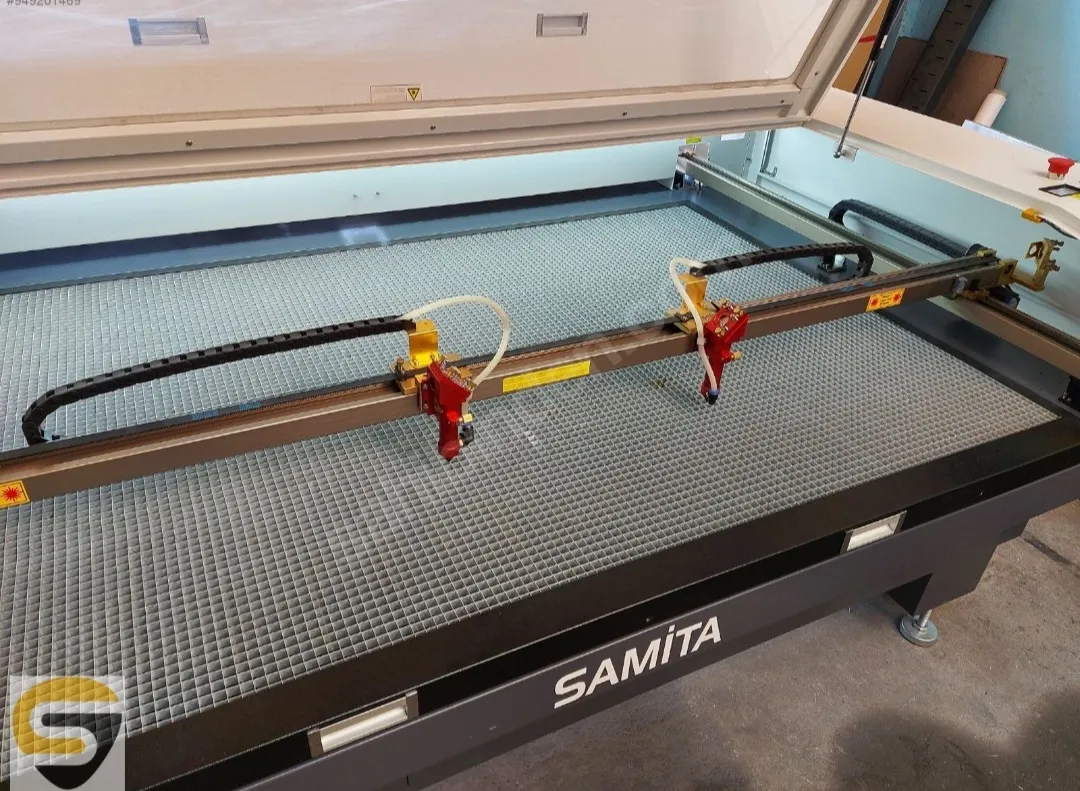

160x100 Double Head Laser Cutting Engraving Machine

cift_kafali_lazer_makina_10
cift_kafali_lazer_makina_11
cift_kafali_lazer_makina_12
cift_kafali_lazer_makina_13
cift_kafali_lazer_makina_14
cift_kafali_lazer_makina_15
cift_kafali_lazer_makina_10
cift_kafali_lazer_makina_11
cift_kafali_lazer_makina_12
cift_kafali_lazer_makina_13
cift_kafali_lazer_makina_14
cift_kafali_lazer_makina_15

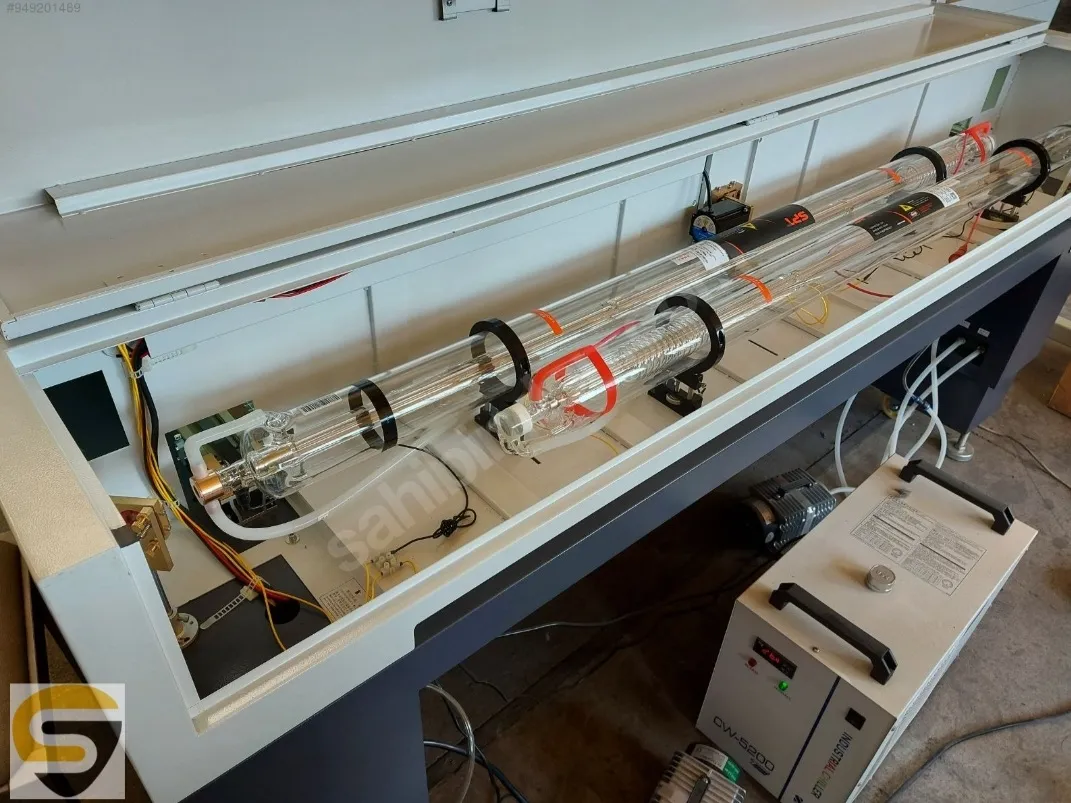

CO2 Glass Tube

Laser Type

160x100

Double Head Working area

130/150wat

Laser Power

0.05mm/sec

Sensitivity

500mm/sec

Engraving Speed

2kwatt/h

Power Consumption

AC 220VAC 50-60Hz

Single Phase Electricity

Samita CW 6000 Chiller Refrigerating

Gold alloy mirrors and American Focus lens

Ruida RDWorks & Awc Lasercad Control Card

High pressure Air Compressor

Smoke and Toxic Gas Air Coil and vent hose

Cuttable Materials

Wood, Mdf, Leather, Vilienks, Denim, Fabric types, Paper, Cardboard, Styrofoam, PVC, Decota, Plywood, Acrylic (Plexiglass)

For Engraving and Marking Materials

Painted metal surfaces, mirrored and transparent plexiglass, glass, mirror, marble, ceramic, granite and its varieties.

WiFi

Wireless Connection

PC Connection

PC connection with USB Cable

USB

External Memory Connection via USB

Internal Memory

Internal File Storage System

Supported Formats

DXF, Aİ, PLT, DST, DSB, BMP, GIF, JPEG, PNG, MNG, TIFF, TGA, PCX, WBMP, WMF, EMF, JBG, JP2, PGX, RAS, PNM, SKA, RAW

Machine

Dimensions: Width 140 x Height 185 x Height 120 cm - Weight 300 kg

Resume Feature

Resume feature in case of power failure

Easy montage

Hassle-Free Assembly in Narrow Spaces with 2 Piece Division

Fully Automatic Protection

Full Protection with Fully Automatic Digital Control Cooling System and Water Sensor System

Durable

Thanks to 30 Years of Machinery and Mechanical Production Experience, Trouble-Free Long-Life Precision Mechanical Parts

Delivery and Setup

We deliver the requested product wherever it is and provide free setup service.

Spare Part

We provide solutions with our technical team in case of situations that require spare parts, maintenance and repair related to the product.

Support

We provide information about the issues and details that should be known and paid attention to the use of the product.
